QMY6-25 big automatic hydraulic movable concrete hollow solid blocks making machine for cement pavers
Introduction of QMY6-25 Industry automatic hydraulic cement blocks bricks making machine:
| Name | Function | Photo(Click photo, see more) |
| QMY6-25 Automatic mobile block machine | Driving block machine like a car, produce blocks | |
| Block lifter : Optional | Clamp blocks, move blocks, load truck |
|
| 500L Mixer (Diameter 1.5m) : Optional | Mixing cement, sand, stone for concrete |
|
Technical Information of QMY6-25 mobile hydraulic concrete hollow solid block machine:
| Model No. | QMY6-25 (Like driving a car, produce blocks by automatic hydraulic system) |
| Forming Cycle | 25 Second |
| Vibration Frequency | 4600-4800r/min |
| Vibration Force | 45-50KN |
| Function | Produce sizes hollow blocks, solid blocks, bricks, curbstones, paving bricks by change molds |
| Total Power | 7.3KW |
| Workers | 1-2 workers |
| Pressure | 16-21mpa |
| Block Machine Size | 2100mm(L)-2200mm(W)-1800mm(H) |
| Host Block Machine Weight | 2800 KGS |
| Advantage | Produce blocks faster and good quality, produce blocks like driving car, see following video |
| Workshop size | 100m length, 60m width, concrete floor is ok |
Production Capacity of QMY6-25 Automatic hydraulic car driving mobile block machine:
GiantLin block machine has different production capacity for different sizes of blocks, paver, curbstone, hourdis.
The following production capacities are for some popular sizes of blocks, bricks, hourdis and interlocking pavers.
| Item No. | Block Size | Production Capacity | Block Photo |
| 1 | Hollow/Solid Block 400-200-200mm (8 inch) | 6 blocks in a mold 864 blocks per hour; 6912 blocks per 8 hours |
|
| 2 | Hollow/Solid Block 400-150-200mm (6 inch) | 7 blocks in a mold 1008 blocks per hour; 9064 blocks per 8 hours | |
| 3 | Hollow/Solid Block 400-125-200mm (5 inch) | 9 blocks in a mold 1296 blocks per hour; 10368 blocks per 8 hours | |
| 4 | Hollow/Solid Block 400-100-200mm (4 inch) | 11 blocks in a mold 1584 blocks per hour; 12672 blocks per 8 hours | |
| 5 | Hourdis 500-150-200mm | 7 blocks in a mold 1008 blocks per hour; 9064 blocks per 8 hours |
|
| 6 | Zig Zag Paver 225-112.5-60/80mm | 15 blocks in a mold 2160 blocks per hour; 17280 blocks per 8 hours |
|
| 7 | Interlocking Paver 200-165-60/80mm | 12 blocks in a mold 12440 blocks per hour; 11520 blocks per 8 hours |
|
| 8 | Rectangle Paver 200-100-60/80mm | 18 blocks in a mold 2592 blocks per hour; 20736 blocks per 8 hours |
|
| 9 | Square Paver 250-60/80mm | 4 blocks in a mold 576 blocks per hour; 4608 blocks per 8 hours |
|

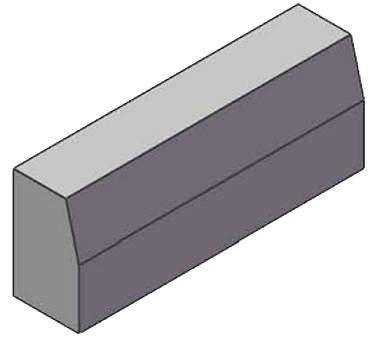

| 10 | Curb Stone 500-150-250mm | 2 blocks in a mold 288 blocks per hour; 2304 blocks per 8 hours |
|
Design of blocks, interlocking paving bricks, curbstones for reference:
Working video of QMY6-25 Automatic hydraulic egg laying block machine (Click photo, see video):
More photos of QMY6-25 automatic car driving type movable cement block machine:
Customer photos(Click photo, see videos of customers):
