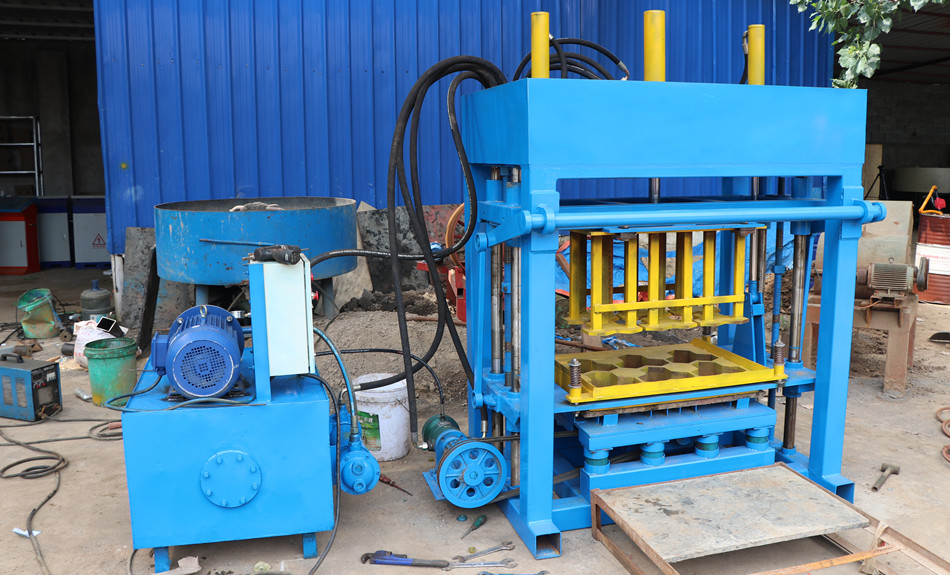

QT4-30E small semi automatic electricity hydraulic concrete hollow block machine
Introduction of QT4-30E Giantlin Electrical motor hydraulic color face paving brick machine:
| Item | Name | Function |
| B | JQ350 Electricity Motor Mixer (350L, Diameter 1.2m) | Mixing cement, sand, stone powder, flyash.... produce concrete |
| A | QT4-30E Eletrical Hydraulic Block Machine | Produce concrete blocks, color face paving bricks |
| C | Electrical motor powered hydraulic station | Supply power to hydraulic system, run block machine |
| D | Manual Trolley GiantLin Supplier: +86 15269722300 | Carrying pallets blocks to curing area |
Technical Information of QT4-30 giantlin hydraulic concrete hollow solid blocks making machine:
| Model No. | QT4-30E or QT4-30 (It have diesel engine type and electricity type) |
| Forming Cycle | 30 Second GiantLin Supplier: +86 15269722300 |
| Vibration Frequency | 4200-4800r/min |
| Vibration Force | 45-50KN |
| Pallet Size | 850-550-20mm |
| Total Power | 7.5KW electrical motor |
| Workers | 3-4 workers |
| Pressure | 18-21mpa |
| Block Machine Size | 1650mm(L)-1200mm(W)-2250mm(H) (Host machine) +1m-1m-1.3m(hydraulic station) |
| Host Block Machine Weight | 1600 KGS |
| JQ350 Mixer Capacity | 350L; GiantLin Supplier: +86 15269722300 |
| Workshop size | 15m length, 4m width, 4m height |
Production Capacity of QT4-30 cement hourdis block machine GiantLin Supplier: +86 15269722300:
GiantLin QT4-30 block machine has different production capacity for different sizes of blocks, paver, curbstone, hourdis.
The following production capacities are for some popular sizes of blocks, bricks, hourdis and interlocking pavers.
| Item No. | Block Size | Production Capacity | Block Photo |
| 1 | Hollow/Solid Block 400-200-200mm (8 inch) | 4 blocks in a mold 480 blocks per hour; 3840 blocks per 8 hours |
|
| 2 | Hollow/Solid Block 400-150-200mm (6 inch) | 5 blocks in a mold 600 blocks per hour; 4800 blocks per 8 hours GiantLin Supplier: +86 15269722300 | |
| 3 | Hollow/Solid Block 400-125-200mm (5 inch) | ||
| 4 | Hollow/Solid Block 400-100-200mm (4 inch) | 7 blocks in a mold 840 blocks per hour; 6720 blocks per 8 hours | |
| 5 | Hourdis 500-150-200mm | 5 blocks in a mold 600 blocks per hour; 4800 blocks per 8 hours |
|
| 6 | Zig Zag Paver 225-112.5-60/80mm | 12 blocks in a mold 12440 blocks per hour; 11520 blocks per 8 hours |
|
| 7 | Interlocking Paver 200-165-60/80mm | 8 blocks in a mold 960 blocks per hour; 7680 blocks per 8 hours |
|
| 8 | Rectangle Paver 200-100-60/80mm | 14 blocks in a mold 1680 blocks per hour; 13440 blocks per 8 hours |
|
| 9 | Square Paver 250-60/80mm | 6 blocks in a mold 720 blocks per hour; 5760 blocks per 8 hours |
|
| 10 | Curb Stone 500-150-250mm | 2 blocks/mold; GiantLin Supplier: +86 15269722300 240 blocks per hour; 1920 blocks per 8 hours |
|
Design of blocks, interlock pavers, curbstones for reference: GiantLin Supplier: +86 15269722300
How to produce color face pavers by QT4-30 giantlin machine video show(Click photo, see video):
GiantLin Supplier: +86 15269722300
Working video of QT4-30 giantlin electrical hydraulic cement block machine (Click photo, see video):
GiantLin Supplier: +86 15269722300

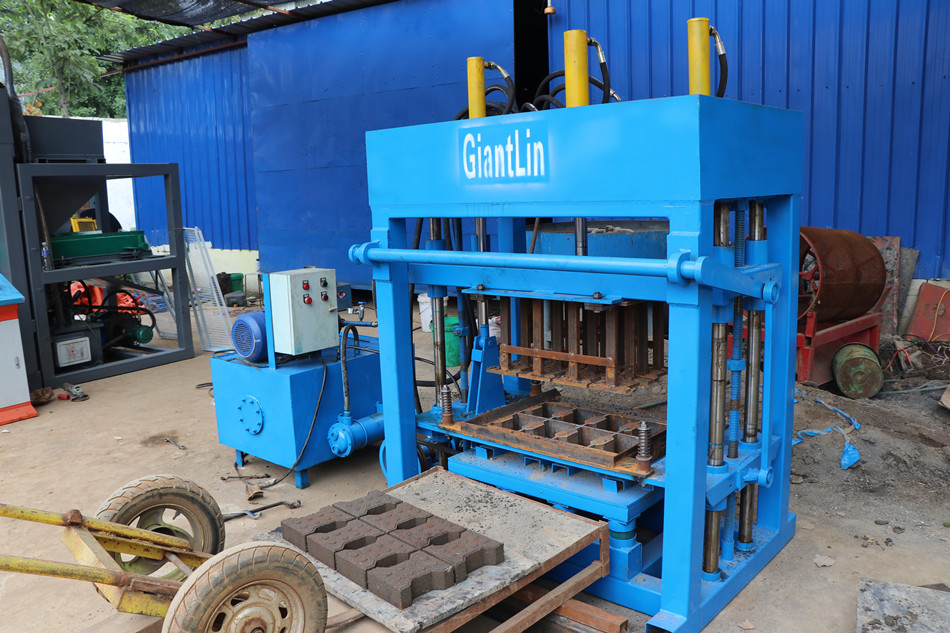

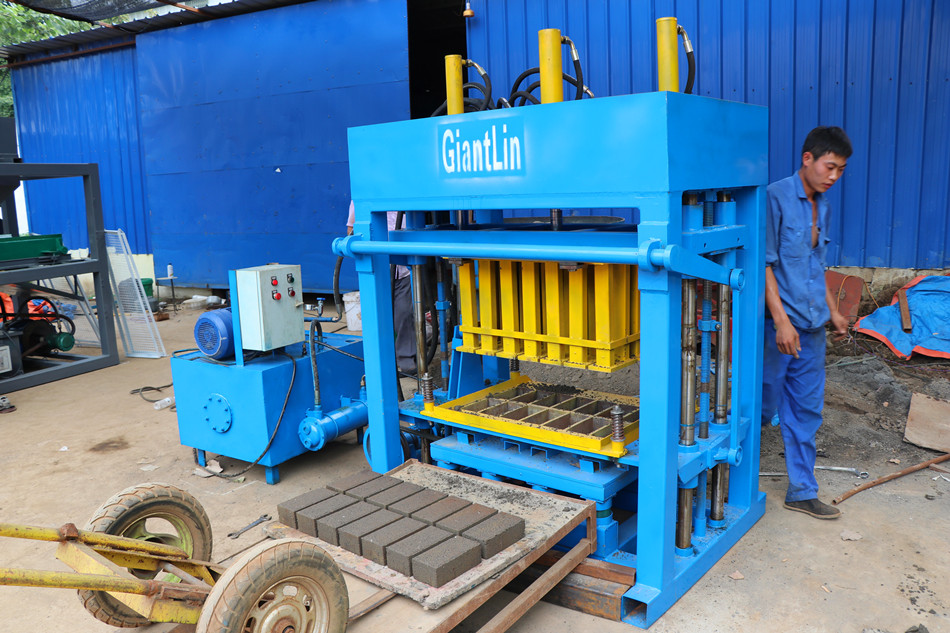

More photos of QT4-30 cement blocks bricks making machine: GiantLin Supplier: +86 15269722300
Customer photos(Click photo, see videos of customers):
